Lightning / Power Surge Arrestor


See Shipping Page*



Single Phase Power Surge Arrestor

Purpose: The surge arrestor is designed to protect motors and controls from voltage surges caused by lightning interference, switching loads and power line interference's. Surges in excess of 500 volts are shunted to ground.

Installation: Attach each black lead to Line 1 and Line 2 supplying power to pressure switch or control box and attach green lead to ground.

Application: 120 or 240 volt single phase 2-wire or 3-wire well pumps or any other 120 or 240 volt motor.

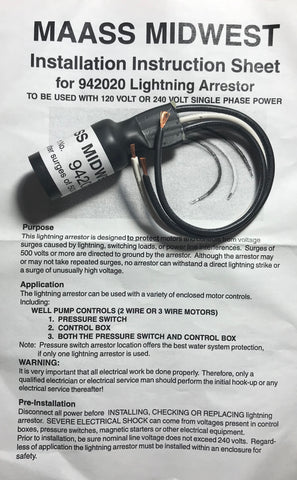

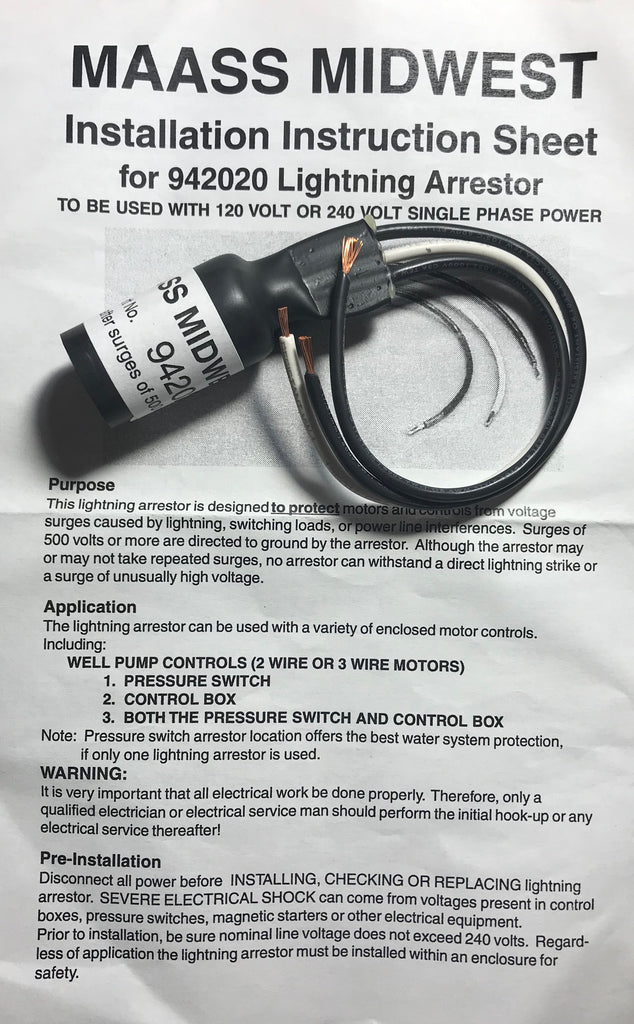

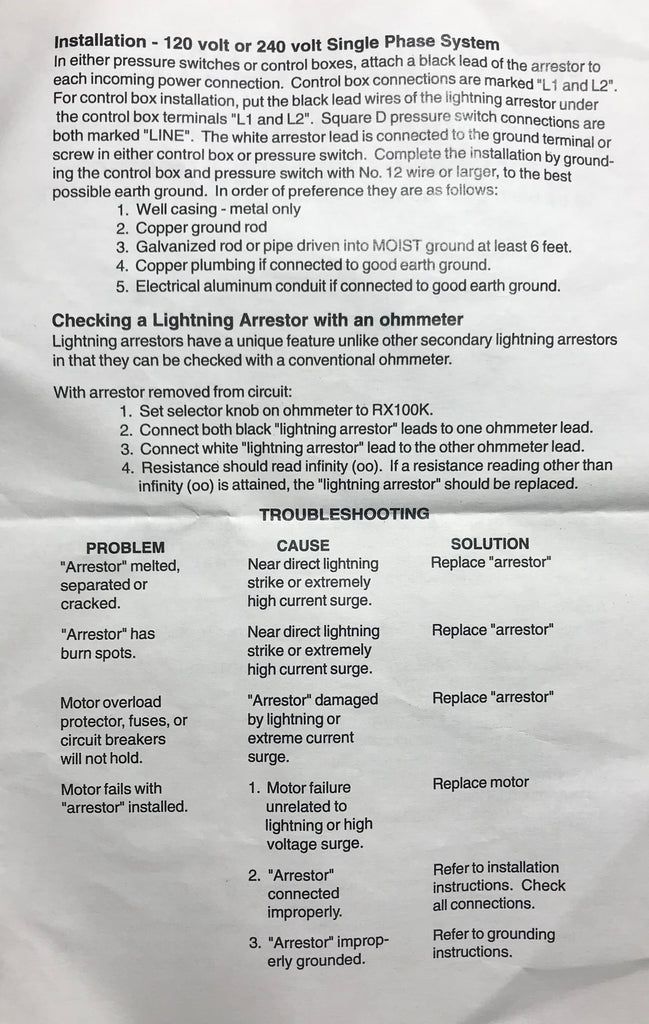

Installation instructions are included.
