Grundfos SQE Manifold Kit


See Shipping Page*


Constant Pressure Manifold Kit for Grundfos SQE Installation

Can be used with other Constant Pressure Systems as well.

The Brass and Stainless Steel Kits include different accessories! See Below.

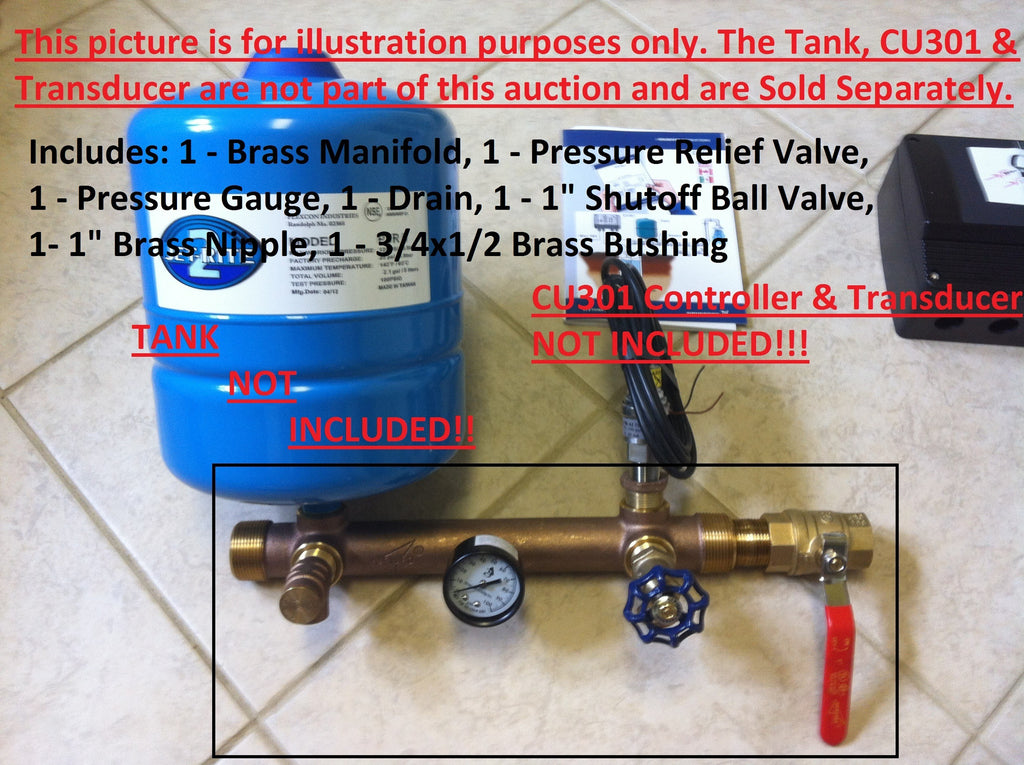

The Tank, CU301 and Transducer are NOT included but may be purchased separately. They are only in the picture for illustration purposes.

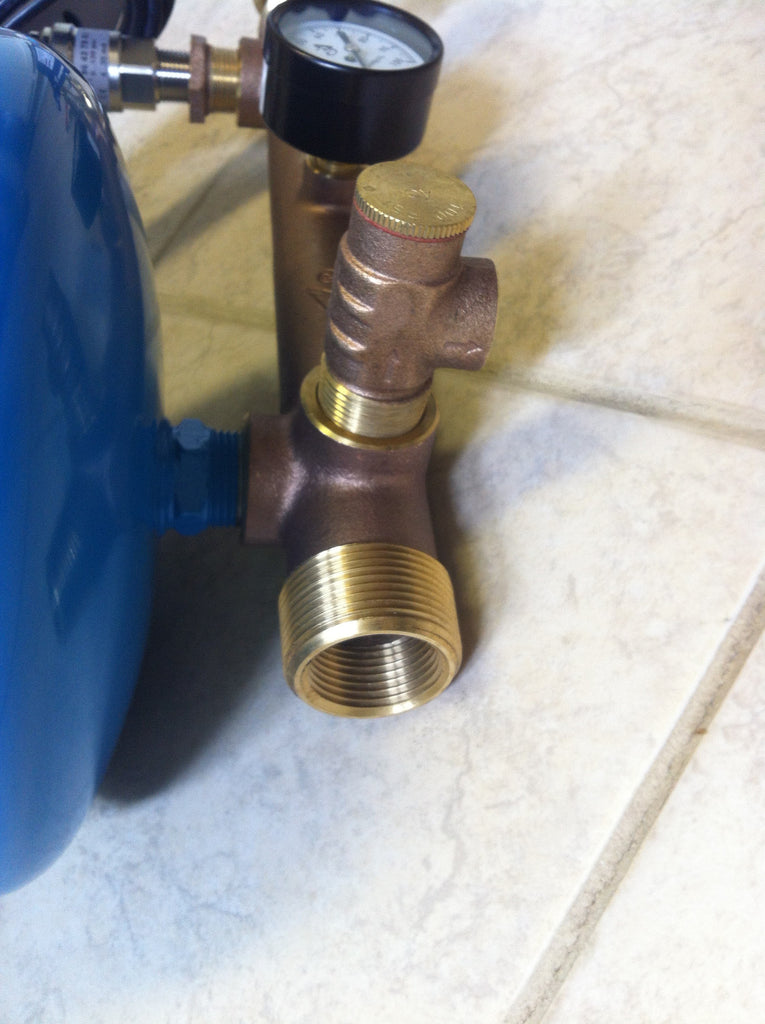

Brass Manifold Kit (Lead Free) Includes:

1 - Brass Manifold
1 - Pressure Relief Valve Set at 100 PSI
1 - Pressure Gauge 100PSI Back Tap
1 - Drain Valve

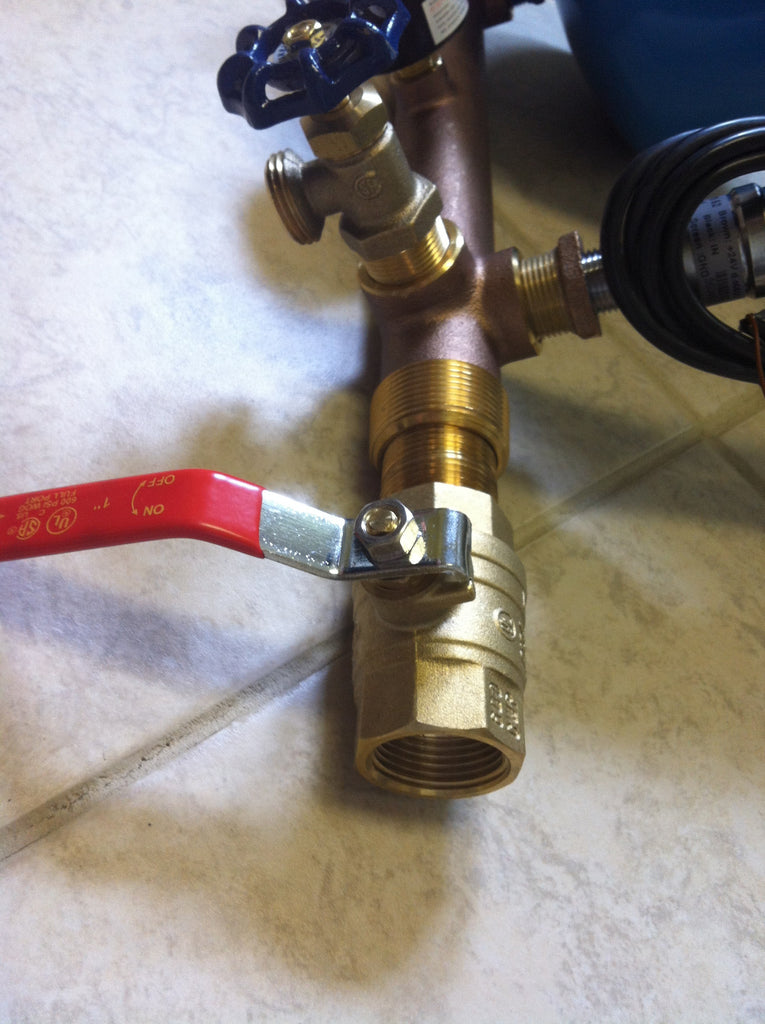

1 - 1" Shutoff Ball Valve
1 - 1" Brass Nipple
1 - 3/4x1/2" Brass Bushing
1 - 3/4x1/4" Brass Bushing(not used for SQE but can be used with standard pressure switch or other setup).

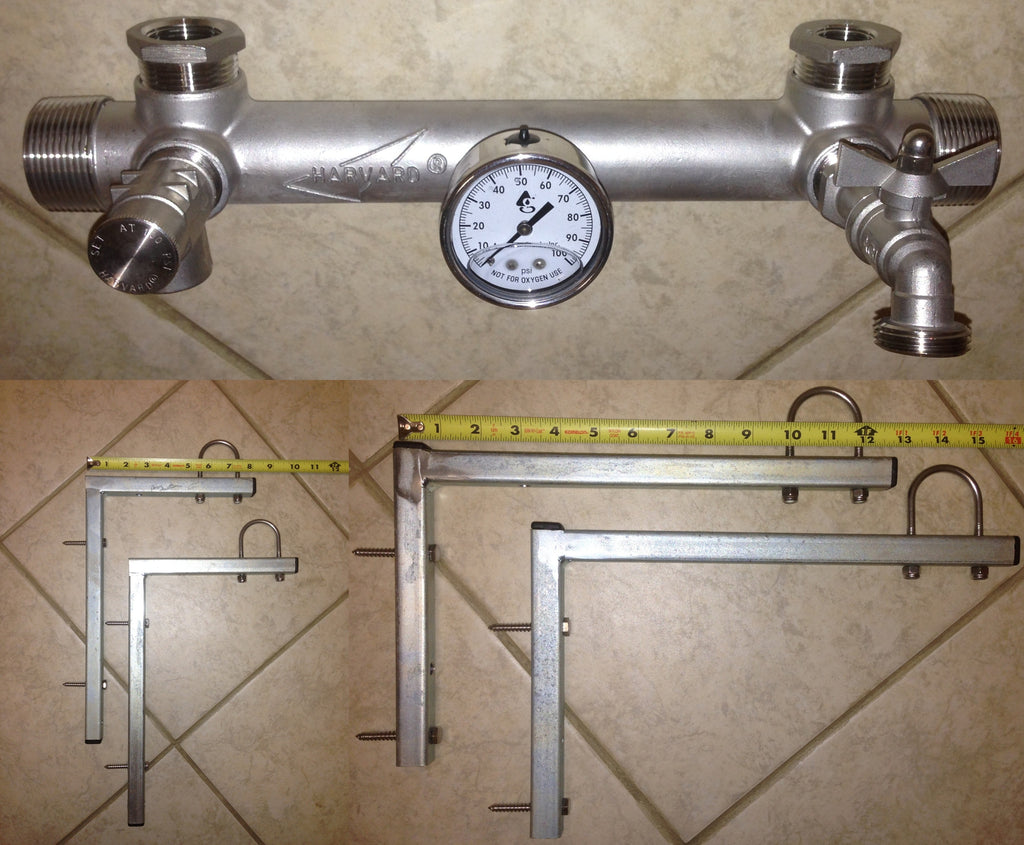

Stainless Steel Manifold Kit Includes:

1 - Stainless Steel Manifold
1 - Stainless Steel Pressure Relief Valve Set at 100 PSI

1 - Stainless Steel Liquid Filled Pressure Gauge 100PSI Back Tap

1 - Stainless Steel Drain Valv
e

1 - 1x1/2" Stainless Steel Bushing

1 - 1x3/4" Stainless Steel Bushing

DOES NOT COME WITH OUTLET SHUTOFF BALL VALVE LIKE BRASS KIT



Manifold Inlet/Outlet connection is 1" FPT or 1-1/4" MPT



Tank Compatibility Notice:

The PJR6 2 Gallon Pressure Tank is compatible with both Manifold Kits

The FT-18 Stainless Steel Flo-Thru 4.5 Gallon Pressure tank is only Compatible with the Stainless Steel Manifold Kit
